Paired Observations

Creative Commons License
This work is licensed under a Creative Commons Attribution 4.0 International License.

Section 4, session 21. The same session continues the collaborative experiments on Cell Shapes and deals with Neutrinos.

The problem

Reconstructed from the syllabus: Winfree's problem sheet has not survived, so this is the editors' reading of the one clue in his handout (see below). The numbers are modern NASA values, not Winfree's.

Part 1. A table with no labels. Each row is a pair of measurements made on one object.

Object x y
A 57.909 87.969
B 108.210 224.701
C 149.598 365.256
D 227.956 686.980
E 778.479 4332.589
F 1432.041 10755.699

y grows with x, but not in proportion. Find a rule y = f(x) that fits every row to better than one per cent, and record how you searched, including the rules you threw away. Do this before reading on.

Part 2. The labels. x is a planet's mean distance from the Sun (million km); y is its orbital period (days). The rows are Mercury, Venus, Earth, Mars, Jupiter and Saturn. Does knowing this change your confidence in the rule?

Part 3. Tests the rule did not see. Two planets unknown in 1619 lie at 2867.043 and 4514.953 million km from the Sun. Predict their periods before looking them up. Then try Jupiter's four large moons, with distance measured from Jupiter:

Moon distance (thousand km) period (days)
Io 421.8 1.769138
Europa 671.1 3.551181
Ganymede 1070.4 7.154553
Callisto 1882.7 16.689017

Does the same form of rule work, with the same constant? And what does your rule leave unexplained?

Why it is in the course

Section 4 is "Patterns, Empirical Generalizations", and this is the model case of one. Kepler's rule for the planets was found in a table of numbers, and it was right for decades before anyone could say why.

The exercise trains three habits. Search the space of possible rules on purpose: ratios, powers and logarithms make a hidden regularity show up as a constant or a straight line. Treat a rule fitted to six rows as unproven until it predicts rows it has not seen. And remember that a correct empirical generalization says that, not why. (The day's reading, Ehrlich's Chapter 6, "The Solar System Has Two Suns", is also about orbits; that link is the editors' observation.)

Where it comes from

In Winfree's handout, the link on this item points to a bookmark named Keplers_Laws. No archived capture contains the target, so the link text and the bookmark name are all that survive of the exercise. Kepler was also on his reading list: the syllabus puts "Arthur Koestler, The Watershed, biography of Johannes Kepler (a chapter of The Sleepwalkers)" on reserve.

From Tycho Brahe's observations of Mars, Johannes Kepler found his first two laws in Astronomia nova (1609). The third came a decade later. In Book V of Harmonices mundi (Linz, 1619) he states an exact proportion between the periodic times of any two planets and their mean distances, found in the spring of 1618 after a false start. It stood as an empirical law with no accepted explanation until Newton's gravitation.

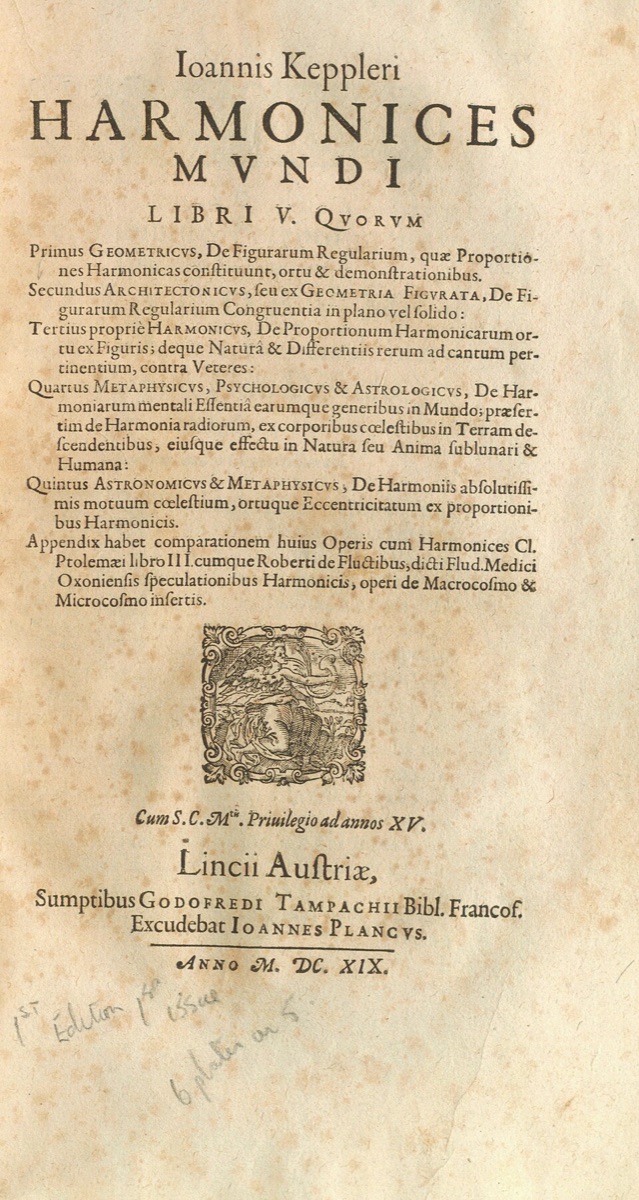

Title page of Kepler's Harmonices mundi libri V, printed at Linz in 1619

Johannes Kepler, Harmonices mundi libri V (Linz, 1619), title page; scan from the Posner Library, Carnegie Mellon University. Public domain, via Wikimedia Commons.

The law later became a benchmark for studying discovery: the BACON programs of Pat Langley and colleagues rediscovered versions of it from data (1981, 1987), and when Yulin Qin and Herbert Simon gave fourteen people the numbers unlabelled (1990), four found it.

Hints
  • By what factor do x and y each grow from first row to last?
  • For two rows, find p with (ratio of y) = (ratio of x) to the power p. Same p for another pair?
  • Logarithms turn powers into slopes: plot log y against log x.
  • Build a quantity from x and y that should be the same in every row, and check it.
Resolution

The rule. A least-squares line through the six points (log x, log y) has slope 1.4985, very close to 3/2. So y goes as x to the power 3/2: the period squared is proportional to the distance cubed. That is Kepler's third law. In these units, x cubed divided by y squared stays between 25.09 and 25.39 for all six rows. Scaling from the Earth's row, the rule predicts every period to within 0.6 per cent.

The tests. Scaling from the Earth, y = 365.256 (x / 149.598)^(3/2) predicts 30,645 days for Uranus (actual 30,685.4) and 60,560 for Neptune (actual 60,189.0), errors of 0.13 and 0.6 per cent. Jupiter's moons give slope 1.5002, the same form, but a constant of about 0.024 in the planets' units instead of 25.1. Why each centre has its own constant, the law cannot say; that waited for Newton.

On logarithmic axes, the periods of the eight planets against their distances from the Sun fall on a straight dashed line of slope three halves; the six planets known to Kepler are filled dots, Uranus and Neptune open dots on the same line

Period against distance for the eight planets, log scales, NASA fact-sheet values. Drawn for this site (CC BY 4.0).

Sources

  • Arthur T. Winfree, The Art of Scientific Discovery (ECOL 479/579), course handout; the session-21 schedule line and its link markup — Wayback Machine capture, 20 April 2002 🔓
  • Johannes Kepler, Harmonices mundi libri V (Linz, 1619), Book V, chapter 3 — Internet Archive 🔓
  • Johannes Kepler, Astronomia nova (1609) — Internet Archive 🔓
  • Pat Langley, "Data-Driven Discovery of Physical Laws", Cognitive Science 5(1), 31–54 (1981) — doi:10.1111/j.1551-6708.1981.tb00869.x 🔒
  • Patrick W. Langley, Herbert A. Simon, Gary Bradshaw and Jan M. Zytkow, Scientific Discovery: Computational Explorations of the Creative Processes (MIT Press, 1987) — doi:10.7551/mitpress/6090.001.0001 🔒
  • Yulin Qin and Herbert A. Simon, "Laboratory Replication of Scientific Discovery Processes", Cognitive Science 14(2), 281–312 (1990) — doi:10.1207/s15516709cog1402_4 🔒
  • Robert Ehrlich, Nine Crazy Ideas in Science: A Few Might Even Be True (Princeton University Press, 2001), Chapter 6 — Internet Archive 🔒 (print-disabled readers only)
  • Arthur Koestler, The Watershed: A Biography of Johannes Kepler (Anchor Books, 1960) — Internet Archive 🔓 (borrow)
  • David R. Williams, NASA Space Science Data Coordinated Archive, Planetary Fact Sheets (per-planet sheets, sidereal periods) — nssdc.gsfc.nasa.gov 🔓
  • David R. Williams, NASA Space Science Data Coordinated Archive, Jovian Satellite Fact Sheet — nssdc.gsfc.nasa.gov 🔓
  • Herman Gordon, Scientific Problem Solving, the successor course to Winfree's: Modules index — scientificproblemsolving.com 🔓
  • Arthur T. Winfree, The Art of Scientific Discovery, original course syllabus — PDF 🔓

How sure are we that this is Winfree's problem?

The handout's link names a topic, not a task, and no other document checked (including Herman Gordon's successor course) describes the exercise. Identification is therefore probable. The candidates:

  • Finding Kepler's third law from paired distances and periods (likeliest): the data are pairs, one distance and one period per planet, and the task needs only arithmetic or a log-log plot.
  • Kepler's sightings of Mars taken 687 days apart in Astronomia nova: also under Kepler's laws, but geometrically heavy and built on sets of three or four sightings.
  • The class's paired GamesWorth judgements (unlikely): a paired design in Winfree's own course, but his link points to Kepler.
  • A matched-pairs statistics exercise (unlikely): standard vocabulary, with nothing linking it to Winfree.
