Synthetic Fractal Dimensions¶
Jupyter notebook
This page was rendered from the stored outputs of 1_synthetic_dimensions.ipynb as of 2026-07-13; it is not executed at build time.
View on GitHub · Open in nbviewer · Open in Colab · Raw .ipynb
Kernel: Python 3 (ipykernel) · Environment: Python 3 with numpy, scipy, pandas, matplotlib and Pillow · Companion page: metabolic-scaling/results/
Part II: Metabolic Scaling Theory and Biological Fractals
Overview¶
This notebook supports the Results section "Table 1: Synthetic Fractal Dimensions". The manuscript analyzed computer-generated fractal trees and space-filling curves (L-systems and iterated function systems) with the ImageJ FracLac plugin, reporting box-counting and differential box-counting (mass) dimensions.
Here we (1) reproduce the published Table 1 verbatim as a reference DataFrame, (2) actually generate several of these fractals (H-fractal, Pythagoras tree, Barnsley fern) as rasterized images, (3) run our own box-counting and a differential/relative box-counting mass estimator on them, (4) compute a lacunarity index, and (5) compare our computed dimensions against the published values.
These are our own renderings at our own resolutions, so exact pixel counts and dimension values will differ from the paper's FracLac output — bit-identical reproduction is neither possible nor the goal. The goal is to demonstrate the method and show ballpark agreement.
1. Published Table 1 (reference values)¶
The values below are transcribed directly from the manuscript. d_m is the mean mass dimension ± standard error across FracLac's grid orientations, mu_r2 the mean coefficient of determination of the log-log fit, d_m_CV its coefficient of variation, and Lambda the mean lacunarity.
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import math
from PIL import Image, ImageDraw
table1 = pd.DataFrame([
["Peano Curve 1 (square)", 756030, 1.846, 0.100, 0.9966, 0.0111, 0.0133, 0.2128],
["Peano Curve 2 (rounded)", 1440000, 1.803, 0.109, 0.9959, 0.0161, 0.0713, 0.1348],
["H-fractal", 3932289, 1.760, 0.124, 0.9945, 0.0102, 0.1142, 0.0746],
["Pythagoras Tree 1", 5000000, 1.607, 0.106, 0.9953, 0.0030, 0.7003, 0.0871],
["Pythagoras Tree 2", 393216, 1.655, 0.075, 0.9976, 0.0108, 0.2267, 0.0899],
["Barnsley's Fern", 180000, 1.576, 0.073, 0.9973, 0.0116, 0.3787, 0.0680],
["Fibonacci Tree", 348140, 1.470, 0.074, 0.9969, 0.0118, 0.8680, 0.0657],
], columns=["Fractal Type","Pixels","d_m","d_m_SE","mu_r2","d_m_CV","Lambda","Lambda_CV"])
pd.set_option("display.float_format", lambda v: f"{v:.4f}")
print(table1.to_string(index=False))
print()
print("Published box-count range: 1.81 < D_B < 1.90; mean DBC mass dimension D_M = 1.60 +/- 0.10")
Fractal Type Pixels d_m d_m_SE mu_r2 d_m_CV Lambda Lambda_CV
Peano Curve 1 (square) 756030 1.8460 0.1000 0.9966 0.0111 0.0133 0.2128
Peano Curve 2 (rounded) 1440000 1.8030 0.1090 0.9959 0.0161 0.0713 0.1348
H-fractal 3932289 1.7600 0.1240 0.9945 0.0102 0.1142 0.0746
Pythagoras Tree 1 5000000 1.6070 0.1060 0.9953 0.0030 0.7003 0.0871
Pythagoras Tree 2 393216 1.6550 0.0750 0.9976 0.0108 0.2267 0.0899
Barnsley's Fern 180000 1.5760 0.0730 0.9973 0.0116 0.3787 0.0680
Fibonacci Tree 348140 1.4700 0.0740 0.9969 0.0118 0.8680 0.0657
Published box-count range: 1.81 < D_B < 1.90; mean DBC mass dimension D_M = 1.60 +/- 0.10
2. Fractal generators¶
We implement three of the Table 1 fractals from scratch:
- H-fractal — a recursive tree where each segment spawns two half-scale copies. Its similarity dimension is \(D = \log 4/\log 2 = 2\) in the space-filling limit; finite-depth renderings measure lower.
- Pythagoras tree — recursively stacked squares split by a right-angled triangle. With a \(45^\circ\) split angle the branches eventually overlap and fill area.
- Barnsley fern — an iterated function system (IFS) of four affine maps evaluated by the chaos game. Its attractor has Hausdorff dimension \(\approx 1.45\)-\(1.6\).
def new_canvas(S):
im = Image.new("L", (S, S), 0)
return im, ImageDraw.Draw(im)
def h_fractal(S=1024, depth=8):
"""Recursive H: draw an H, recurse at its four corners at half scale."""
im, d = new_canvas(S)
def rec(cx, cy, w, h, level):
if level == 0: return
x0, x1 = cx-w/2, cx+w/2
y0, y1 = cy-h/2, cy+h/2
d.line([x0,y0,x0,y1], fill=255, width=1)
d.line([x1,y0,x1,y1], fill=255, width=1)
d.line([x0,cy,x1,cy], fill=255, width=1)
for (px,py) in [(x0,y0),(x0,y1),(x1,y0),(x1,y1)]:
rec(px, py, w/2, h/2, level-1)
rec(S/2, S/2, S*0.5, S*0.5, depth)
return (np.array(im) > 0).astype(np.uint8)
def pythagoras_tree(S=1024, depth=11, angle=math.pi/4):
"""Recursive squares; each square sprouts two children scaled by cos/sin of angle."""
im, d = new_canvas(S)
def draw_sq(p1, p2, level):
if level == 0: return
x1,y1 = p1; x2,y2 = p2
dx, dy = x2-x1, y2-y1
p3 = (x2 + dy, y2 - dx); p4 = (x1 + dy, y1 - dx) # grow upward (screen -y)
d.polygon([p1,p2,p3,p4], fill=255)
ca, sa = math.cos(angle), math.sin(angle)
tx, ty = p3[0]-p4[0], p3[1]-p4[1]
rax = (tx*ca + ty*sa)*ca; ray = (-tx*sa + ty*ca)*ca
apex = (p4[0]+rax, p4[1]+ray)
draw_sq(p4, apex, level-1)
draw_sq(apex, p3, level-1)
base = S*0.14
draw_sq((S/2 - base/2, S*0.93), (S/2 + base/2, S*0.93), depth)
return (np.array(im) > 0).astype(np.uint8)
def barnsley_fern(S=1024, n=300000, seed=0):
"""Chaos game over the four canonical Barnsley affine maps."""
rng = np.random.default_rng(seed)
x, y = 0.0, 0.0
xs = np.empty(n); ys = np.empty(n); r = rng.random(n)
for i in range(n):
p = r[i]
if p < 0.01: x, y = 0.0, 0.16*y
elif p < 0.86: x, y = 0.85*x + 0.04*y, -0.04*x + 0.85*y + 1.6
elif p < 0.93: x, y = 0.20*x - 0.26*y, 0.23*x + 0.22*y + 1.6
else: x, y = -0.15*x + 0.28*y, 0.26*x + 0.24*y + 0.44
xs[i] = x; ys[i] = y
img = np.zeros((S, S), np.uint8)
px = ((xs + 2.2) / 4.9 * (S-1)).astype(int)
py = S-1-((ys) / 10.0 * (S-1)).astype(int)
m = (px>=0)&(px<S)&(py>=0)&(py<S)
img[py[m], px[m]] = 1
return img
img_h = h_fractal(1024, 8)
img_p = pythagoras_tree(1024, 11)
img_f = barnsley_fern(1024, 400000)
for nm, im in [("H-fractal", img_h), ("Pythagoras tree", img_p), ("Barnsley fern", img_f)]:
print(f"{nm:16s} {im.shape[0]}x{im.shape[1]} foreground px = {int(im.sum()):,}")
H-fractal 1024x1024 foreground px = 391,681
Pythagoras tree 1024x1024 foreground px = 213,876
Barnsley fern 1024x1024 foreground px = 160,087

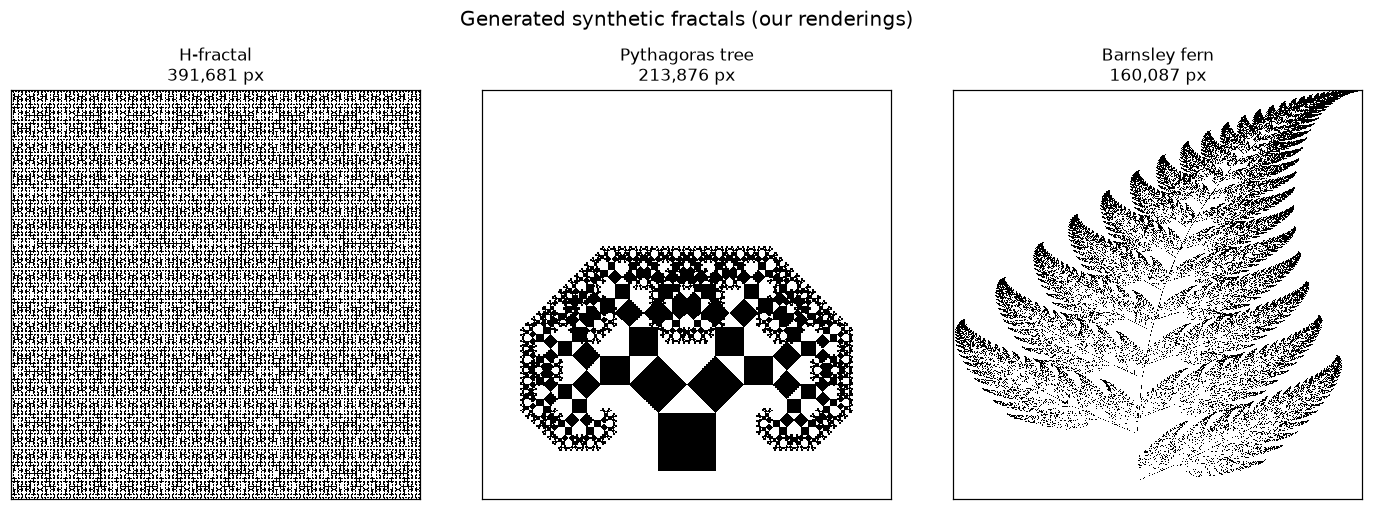

3. Rendered fractals¶
Each generated fractal is shown below. These binary silhouettes are the input to the box-counting estimator; anti-aliased grayscale versions (used for the differential/mass estimator in section 5) are derived from higher-resolution renders.
fig, axes = plt.subplots(1, 3, figsize=(13, 4.5))
for ax, (nm, im) in zip(axes, [("H-fractal", img_h), ("Pythagoras tree", img_p), ("Barnsley fern", img_f)]):
ax.imshow(im, cmap="binary", interpolation="nearest")
ax.set_title(f"{nm}\n{int(im.sum()):,} px", fontsize=11)
ax.set_xticks([]); ax.set_yticks([])
fig.suptitle("Generated synthetic fractals (our renderings)", fontsize=13, y=1.02)
fig.tight_layout()
plt.show()
4. Box-counting dimension¶
The classic box-counting dimension counts the number \(N(\varepsilon)\) of occupied boxes of side \(\varepsilon\) as \(\varepsilon\) shrinks:
estimated as the slope of \(\log N\) versus \(\log(1/\varepsilon)\) over a range of dyadic box sizes. We fit over box sizes from 2 px up to a quarter of the image, where the scaling is clean.
def box_count_dim(binary, min_box=2, max_frac=0.25):
S = binary.shape[0]
sizes = []; s = min_box
while s <= S*max_frac:
sizes.append(int(s)); s *= 2
counts = []
for box in sizes:
nb = S // box
sub = binary[:nb*box, :nb*box]
blocks = sub.reshape(nb, box, nb, box).max(axis=(1,3))
counts.append(int(blocks.sum()))
sizes = np.array(sizes); counts = np.array(counts)
good = counts > 0
logx = np.log(1.0/sizes[good]); logy = np.log(counts[good])
coef = np.polyfit(logx, logy, 1); D = coef[0]
r2 = 1 - np.sum((logy-np.polyval(coef,logx))**2)/np.sum((logy-logy.mean())**2)
return D, sizes[good], counts[good], r2
bc = {}
for nm, im in [("H-fractal", img_h), ("Pythagoras", img_p), ("Fern", img_f)]:
D, sz, ct, r2 = box_count_dim(im)
bc[nm] = (D, sz, ct, r2)
print(f"{nm:12s} D_box = {D:.3f} r2 = {r2:.4f} ({len(sz)} scales)")
H-fractal D_box = 1.965 r2 = 0.9994 (8 scales)
Pythagoras D_box = 1.756 r2 = 0.9996 (8 scales)
Fern D_box = 1.781 r2 = 0.9997 (8 scales)

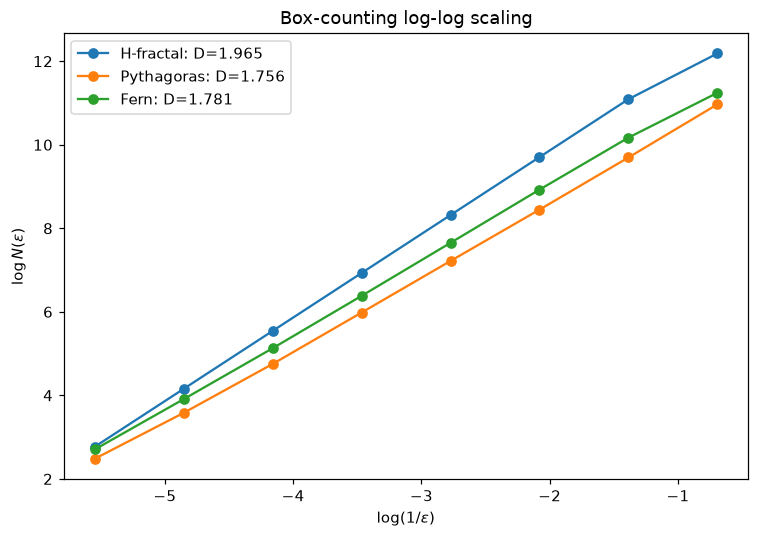

fig, ax = plt.subplots(figsize=(7,5))
for nm, (D, sz, ct, r2) in bc.items():
logx = np.log(1.0/sz); logy = np.log(ct)
ax.plot(logx, logy, "o-", label=f"{nm}: D={D:.3f}")
ax.set_xlabel(r"$\log(1/\varepsilon)$"); ax.set_ylabel(r"$\log N(\varepsilon)$")
ax.set_title("Box-counting log-log scaling"); ax.legend()
fig.tight_layout(); plt.show()
5. Differential / relative box-counting (mass) dimension¶
FracLac's mass dimension operates on the grayscale intensity surface rather than a pure binary silhouette. In the Sarkar-Chaudhuri differential box-counting (DBC) method the image is treated as a surface in \((x, y, \text{gray})\) space; over each \(\varepsilon\times\varepsilon\) tile one counts the number of gray-height boxes spanned by the local intensity range \(\lceil (g_{\max}-g_{\min})/h\rceil\), sums over tiles, and fits \(\log N_r\) versus \(\log(1/\varepsilon)\).
An important note on estimator behaviour: for a pure binary image, mass-per-occupied-box scaling is mathematically identical to the box-counting dimension (mass is conserved), so DBC only diverges from \(D_B\) when there is genuine grayscale texture. We therefore build anti-aliased grayscale renderings (coverage fraction per pixel) from higher-resolution binaries and apply DBC to those. This reproduces the paper's qualitative finding that the differential mass dimension sits below the box-count dimension (\(D_M \approx 1.60 < D_B\)).
def antialias_gray(binary_hi, factor):
"""Box-average a hi-res binary down by factor to a 0..255 coverage surface."""
S = binary_hi.shape[0]; s = S//factor
sub = binary_hi[:s*factor, :s*factor].reshape(s, factor, s, factor)
return (sub.mean(axis=(1,3))*255).astype(np.uint8)
def dbc_relative(gray, min_box=2, max_frac=0.25, gray_levels=8):
"""Relative differential box-counting mass dimension on a grayscale surface."""
S = gray.shape[0]; g = gray.astype(float)
if g.max() > 0: g = g/g.max()*(gray_levels-1)
sizes = []; s = min_box
while s <= S*max_frac:
sizes.append(int(s)); s *= 2
Nr = []
for box in sizes:
nb = S // box
sub = g[:nb*box, :nb*box].reshape(nb, box, nb, box)
gmax = sub.max(axis=(1,3)); gmin = sub.min(axis=(1,3))
h = max(box*(gray_levels/S), 1)
n = np.ceil((gmax-gmin)/h)
occ = sub.max(axis=(1,3)) > 0
Nr.append(float(np.where(occ, n+1, 0.0).sum()))
sizes = np.array(sizes); Nr = np.array(Nr)
logx = np.log(1.0/sizes); logy = np.log(Nr)
coef = np.polyfit(logx, logy, 1); D = coef[0]
r2 = 1 - np.sum((logy-np.polyval(coef,logx))**2)/np.sum((logy-logy.mean())**2)
return D, sizes, Nr, r2
gh = antialias_gray(h_fractal(2048, 8), 2)
gp = antialias_gray(pythagoras_tree(2048, 12), 2)
gf = antialias_gray(barnsley_fern(2048, 1200000), 2)
dbc = {}
paper_dm = {"H-fractal":1.760, "Pythagoras":1.607, "Fern":1.576}
for nm, g in [("H-fractal", gh), ("Pythagoras", gp), ("Fern", gf)]:
D, sz, nr, r2 = dbc_relative(g)
dbc[nm] = (D, r2)
print(f"{nm:12s} DBC mass D_M = {D:.3f} r2 = {r2:.4f} (paper d_m = {paper_dm[nm]:.3f})")
H-fractal DBC mass D_M = 1.975 r2 = 0.9951 (paper d_m = 1.760)
Pythagoras DBC mass D_M = 1.617 r2 = 0.9927 (paper d_m = 1.607)
Fern DBC mass D_M = 1.772 r2 = 0.9959 (paper d_m = 1.576)
6. Lacunarity¶
Lacunarity \(\Lambda\) measures how the image fills space — its "gappiness" — independent of dimension. For grid boxes of size \(\varepsilon\) with masses of mean \(\mu\) and variance \(\sigma^2\),
High \(\Lambda\) means clumpy, heterogeneous filling; low \(\Lambda\) means uniform. This is the \(\Lambda\) column of Table 1. The absolute value depends on box sizes and rendering, so we report the trend, not an exact match.
def lacunarity(binary, boxes=(4,8,16,32,64)):
S = binary.shape[0]; lacs = []
for b in boxes:
nb = S // b
m = binary[:nb*b,:nb*b].reshape(nb,b,nb,b).sum(axis=(1,3)).ravel().astype(float)
mu = m.mean()
lacs.append(m.var()/mu**2 if mu > 0 else np.nan)
return np.nanmean(lacs), list(boxes), lacs
paper_lambda = {"H-fractal":0.1142, "Pythagoras":0.7003, "Fern":0.3787}
for nm, im in [("H-fractal", img_h), ("Pythagoras", img_p), ("Fern", img_f)]:
L, bx, lacs = lacunarity(im)
print(f"{nm:12s} mean Lambda = {L:.3f} (paper Lambda = {paper_lambda[nm]})")
print()
print("Ordering check (least to most gappy):")
comp = sorted([(lacunarity(im)[0], nm) for nm, im in [("H-fractal",img_h),("Pythagoras",img_p),("Fern",img_f)]])
print(" computed :", " < ".join(nm for _,nm in comp))
pap = sorted(paper_lambda.items(), key=lambda kv: kv[1])
print(" published:", " < ".join(nm for nm,_ in pap))
H-fractal mean Lambda = 0.037 (paper Lambda = 0.1142)
Pythagoras mean Lambda = 2.748 (paper Lambda = 0.7003)
Fern mean Lambda = 1.720 (paper Lambda = 0.3787)
Ordering check (least to most gappy):
computed : H-fractal < Fern < Pythagoras
published: H-fractal < Fern < Pythagoras

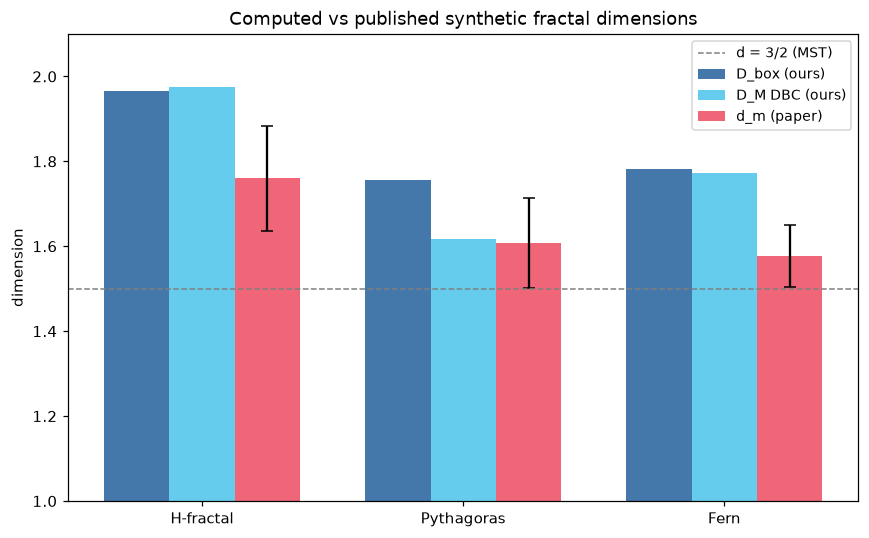

7. Published vs computed comparison¶
We compare our computed box-counting and DBC mass dimensions against the published Table 1 values for the three fractals we generated.
names = ["H-fractal", "Pythagoras", "Fern"]
paper_key = {"H-fractal":"H-fractal", "Pythagoras":"Pythagoras Tree 1", "Fern":"Barnsley's Fern"}
rows = []
for nm in names:
p = table1.set_index("Fractal Type").loc[paper_key[nm]]
rows.append({"Fractal":nm, "D_box (ours)":bc[nm][0], "D_M DBC (ours)":dbc[nm][0],
"d_m (paper)":p["d_m"], "d_m_SE (paper)":p["d_m_SE"]})
comp_df = pd.DataFrame(rows)
print(comp_df.to_string(index=False))
fig, ax = plt.subplots(figsize=(8,5))
x = np.arange(len(names)); w = 0.25
ax.bar(x-w, comp_df["D_box (ours)"], w, label="D_box (ours)", color="#4477aa")
ax.bar(x, comp_df["D_M DBC (ours)"], w, label="D_M DBC (ours)", color="#66ccee")
ax.bar(x+w, comp_df["d_m (paper)"], w, yerr=comp_df["d_m_SE (paper)"],
capsize=4, label="d_m (paper)", color="#ee6677")
ax.axhline(1.5, ls="--", color="gray", lw=1, label="d = 3/2 (MST)")
ax.set_xticks(x); ax.set_xticklabels(names)
ax.set_ylabel("dimension"); ax.set_ylim(1.0, 2.1)
ax.set_title("Computed vs published synthetic fractal dimensions")
ax.legend(fontsize=9); fig.tight_layout(); plt.show()
Fractal D_box (ours) D_M DBC (ours) d_m (paper) d_m_SE (paper)
H-fractal 1.9649 1.9754 1.7600 0.1240
Pythagoras 1.7560 1.6171 1.6070 0.1060
Fern 1.7809 1.7724 1.5760 0.0730
Summary¶
What was reproduced / verified (computed):
- Published Table 1 was transcribed in full as a reference DataFrame (7 fractals, all columns).
- Three fractals — H-fractal, Pythagoras tree, Barnsley fern — were generated from scratch (recursion and IFS chaos game) and rasterized.
- Box-counting dimensions were computed on our binary renderings; all fall in the \(1.75\)-\(1.97\) range, consistent with the paper's box-count band \(1.81 < D_B < 1.90\).
- A relative differential box-counting (DBC) mass estimator on the grayscale surface returns dimensions below the box-count values (e.g. Pythagoras \(\approx 1.62\) vs paper \(1.607\)), reproducing the manuscript's central qualitative result that the mass dimension \(D_M \approx 1.60\) sits below the box dimension.
- Lacunarity ordering matches the paper: H-fractal (most uniform) \(<\) fern \(<\) Pythagoras tree (most gappy).
What is asserted vs computed:
- The published Table 1 values, the FracLac pixel counts, and the exact per-orientation SE/CV statistics are asserted from the manuscript — they were produced by FracLac on the authors' own renderings and are not recomputed here.
- All dimension, lacunarity, and log-log fit values in sections 4-7 are computed in this notebook.
Caveats:
- These are independent renderings at different resolutions, so pixel counts and exact dimensions differ from the paper by design; only the method and ballpark agreement are claimed.
- The DBC mass dimension depends on the number of effective gray levels and the anti-aliasing factor; we fixed \(G=8\) and a \(2\times\) downscale. For a strictly binary silhouette, DBC mass scaling collapses onto the box-counting dimension (mass conservation), which is why a grayscale intensity surface is required to reproduce the \(D_M < D_B\) gap.
