Self-Affine Fractal Generators¶
Jupyter notebook
This page was rendered from the stored outputs of fractal_generators.ipynb as of 2026-10-24; it is not executed at build time. 7 interactive widget outputs need a live kernel and are shown as notes; 1 Plotly/JavaScript figure is linked to nbviewer.
View on GitHub · Open in nbviewer · Open in Colab · Raw .ipynb
Kernel: Fractal Foundations GPU (Python 3.10) · Environment: docs/notebooks/streamlit-plotly.yaml or environments/fractal-foundations-gpu.yml (ipywidgets, plotly, numba)
Setup¶
Install missing packages
mamba install -c conda-forge -y ipykernel ipywidgets matplotlib numba numpy plotly pythreejs streamlit
or create new conda environment
mamba env create -f ../streamlit-plotly.yaml
Activate the newly created environment:
mamba activate streamlit-plotly
python -m ipykernel install --user --name=streamlit-plotly --display-name "Python (Streamlit-Plotly)"
!which python
~/.python/current/bin/python
import numpy as np
import matplotlib.pyplot as plt
from ipywidgets import interact, widgets

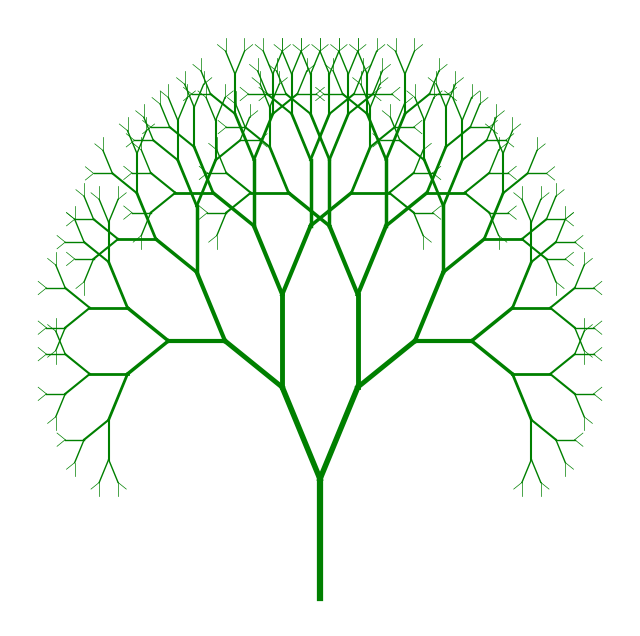

def draw_tree(x1, y1, angle, depth, angle_change, length_factor, linewidth_factor):
if depth > 0:
x2 = x1 + np.cos(angle) * depth * length_factor
y2 = y1 + np.sin(angle) * depth * length_factor
plt.plot([x1, x2], [y1, y2], color='green', linewidth=depth * linewidth_factor)
draw_tree(x2, y2, angle - angle_change, depth - 1, angle_change, length_factor, linewidth_factor)
draw_tree(x2, y2, angle + angle_change, depth - 1, angle_change, length_factor, linewidth_factor)
def plot_tree(depth, angle_deg, length_factor, linewidth_factor):
plt.figure(figsize=(8, 8))
plt.axis('off')
draw_tree(0, -100, np.pi/2, depth, np.deg2rad(angle_deg), length_factor, linewidth_factor)
plt.show()
interact(
plot_tree,
depth=widgets.IntSlider(min=1, max=15, step=1, value=9, description='Depth'),
angle_deg=widgets.FloatSlider(min=0, max=90, step=1, value=30, description='Branch Angle'),
length_factor=widgets.FloatSlider(min=5, max=20, step=0.5, value=10, description='Branch Length'),
linewidth_factor=widgets.FloatSlider(min=0.1, max=2, step=0.1, value=0.5, description='Branch Width')
)
Interactive widget — run the notebook to use it.
import numpy as np
import matplotlib.pyplot as plt
from ipywidgets import interact, widgets

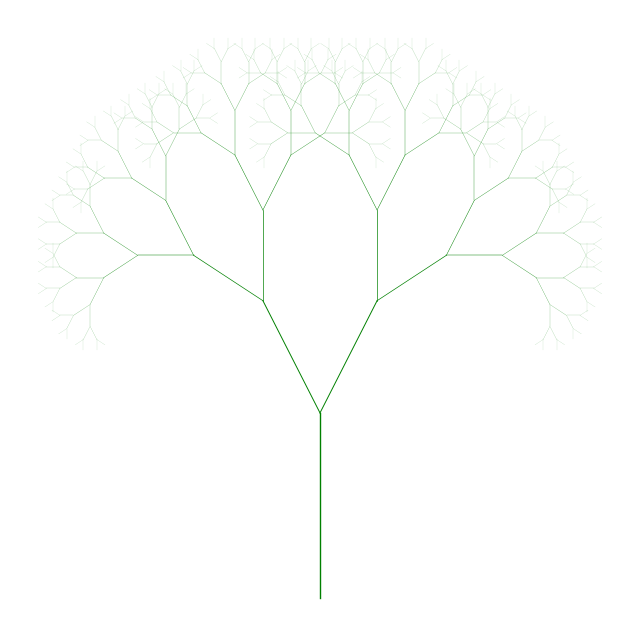

def draw_tree(x1, y1, angle, depth, angle_range_deg, length_factor, linewidth_factor, length_scale, width_scale, branching_factor, branching_scale, initial_depth):
if depth > 0:
scale_exponent = initial_depth - depth
scaled_length = length_factor * (length_scale ** scale_exponent)
scaled_width = linewidth_factor * (width_scale ** scale_exponent)
x2 = x1 + np.cos(angle) * scaled_length
y2 = y1 + np.sin(angle) * scaled_length
plt.plot([x1, x2], [y1, y2], color='green', linewidth=scaled_width)
# Compute current branching factor
current_branching_factor = max(1, int(branching_factor * (branching_scale ** scale_exponent)))
angle_range = np.deg2rad(angle_range_deg)
angles = np.linspace(angle - angle_range / 2, angle + angle_range / 2, current_branching_factor)
for branch_angle in angles:
draw_tree(x2, y2, branch_angle, depth - 1, angle_range_deg, length_factor, linewidth_factor, length_scale, width_scale, branching_factor, branching_scale, initial_depth)
def plot_tree(depth, angle_range_deg, length_factor, linewidth_factor, length_scale, width_scale, branching_factor, branching_scale):
plt.figure(figsize=(8, 8))
plt.axis('off')
draw_tree(0, -100, np.pi/2, depth, angle_range_deg, length_factor, linewidth_factor, length_scale, width_scale, branching_factor, branching_scale, depth)
plt.show()
interact(
plot_tree,
depth=widgets.IntSlider(min=1, max=15, step=1, value=9, description='Depth'),
angle_range_deg=widgets.FloatSlider(min=0, max=180, step=1, value=60, description='Angle Range'),
length_factor=widgets.FloatSlider(min=1, max=100, step=1, value=10, description='Base Length'),
linewidth_factor=widgets.FloatSlider(min=0.1, max=10, step=0.1, value=1, description='Base Width'),
length_scale=widgets.FloatSlider(min=0.5, max=1.5, step=0.1, value=0.7, description='Length Scale'),
width_scale=widgets.FloatSlider(min=0.5, max=1.5, step=0.1, value=0.7, description='Width Scale'),
branching_factor=widgets.IntSlider(min=1, max=5, step=1, value=2, description='Branches'),
branching_scale=widgets.FloatSlider(min=0.5, max=2.0, step=0.1, value=1.0, description='Branching Scale')
)
Interactive widget — run the notebook to use it.
import numpy as np
import plotly.graph_objects as go
from ipywidgets import interact, widgets
def cylinder_between_points(p0, p1, radius, n=8):
"""
Generate the mesh data for a cylinder between two points p0 and p1.
"""
# Vector from p0 to p1
v = np.array(p1) - np.array(p0)
# Length of the cylinder
length = np.linalg.norm(v)
if length == 0:
return None # Avoid division by zero
# Unit vector in direction of cylinder axis
v = v / length
# Create arbitrary vectors orthogonal to v
not_v = np.array([1, 0, 0])
if (v == not_v).all():
not_v = np.array([0, 1, 0])
n1 = np.cross(v, not_v)
n1 /= np.linalg.norm(n1)
n2 = np.cross(v, n1)
# Generate circle points in the plane orthogonal to v
t = np.linspace(0, 2 * np.pi, n)
circle = np.array([np.cos(t), np.sin(t)])
circle_pts = radius * (np.outer(n1, circle[0]) + np.outer(n2, circle[1]))
# Points at base and top of cylinder
x_base = p0[0] + circle_pts[0]
y_base = p0[1] + circle_pts[1]
z_base = p0[2] + circle_pts[2]
x_top = x_base + v[0] * length
y_top = y_base + v[1] * length
z_top = z_base + v[2] * length
# Combine base and top points
x = np.concatenate([x_base, x_top])
y = np.concatenate([y_base, y_top])
z = np.concatenate([z_base, z_top])
# Define faces of the cylinder
faces = []
n_points = n
for i in range(n_points):
next_i = (i + 1) % n_points
# Side faces
faces.append([i, next_i, n_points + next_i])
faces.append([i, n_points + next_i, n_points + i])
return x, y, z, faces

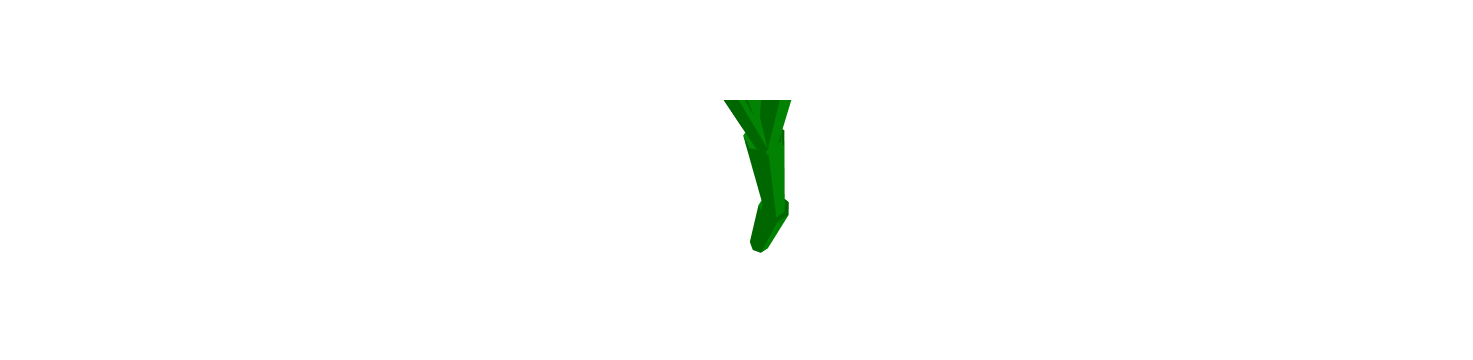

def draw_tree_3d(x1, y1, z1, theta, phi, depth, angle_range_deg, length_factor,
linewidth_factor, length_scale, width_scale, branching_factor,
branching_scale, initial_depth, cylinders):
if depth > 0:
scale_exponent = initial_depth - depth
scaled_length = length_factor * (length_scale ** scale_exponent)
scaled_width = linewidth_factor * (width_scale ** scale_exponent)
# Compute the direction vector
direction = np.array([
np.sin(theta) * np.cos(phi),
np.sin(theta) * np.sin(phi),
np.cos(theta)
])
# Compute the new point
x2 = x1 + direction[0] * scaled_length
y2 = y1 + direction[1] * scaled_length
z2 = z1 + direction[2] * scaled_length
# Store the cylinder data
cylinder_data = cylinder_between_points(
[x1, y1, z1],
[x2, y2, z2],
scaled_width
)
if cylinder_data:
x_cyl, y_cyl, z_cyl, faces = cylinder_data
cylinders.append({
'x': x_cyl,
'y': y_cyl,
'z': z_cyl,
'faces': faces,
'color': 'green'
})
# Compute current branching factor
current_branching_factor = max(1, int(branching_factor * (branching_scale ** scale_exponent)))
# Generate new branches
angle_range_rad = np.deg2rad(angle_range_deg)
for _ in range(current_branching_factor):
# Random angles within the specified range
delta_theta = angle_range_rad * (np.random.rand() - 0.5)
delta_phi = angle_range_rad * (np.random.rand() - 0.5)
new_theta = theta + delta_theta
new_phi = phi + delta_phi
# Recursive call
draw_tree_3d(
x2, y2, z2, new_theta, new_phi, depth - 1, angle_range_deg,
length_factor, linewidth_factor, length_scale, width_scale,
branching_factor, branching_scale, initial_depth, cylinders
)
def plot_tree_3d(depth, angle_range_deg, length_factor, linewidth_factor,
length_scale, width_scale, branching_factor, branching_scale):
cylinders = []
initial_theta = 0 # Initial angle from z-axis
initial_phi = 0 # Initial angle in x-y plane
initial_depth = depth
draw_tree_3d(
0, 0, 0, initial_theta, initial_phi, depth, angle_range_deg,
length_factor, linewidth_factor, length_scale, width_scale,
branching_factor, branching_scale, initial_depth, cylinders
)
# Prepare data for plotting
fig = go.Figure()
for cyl in cylinders:
fig.add_trace(go.Mesh3d(
x=cyl['x'],
y=cyl['y'],
z=cyl['z'],
color=cyl['color'],
opacity=1.0,
i=[face[0] for face in cyl['faces']],
j=[face[1] for face in cyl['faces']],
k=[face[2] for face in cyl['faces']],
flatshading=True,
showscale=False
))
fig.update_layout(
scene=dict(
xaxis=dict(visible=False),
yaxis=dict(visible=False),
zaxis=dict(visible=False),
aspectmode='data'
),
showlegend=False
)
fig.show()
interact(
plot_tree_3d,
depth=widgets.IntSlider(min=1, max=8, step=1, value=4, description='Depth'),
angle_range_deg=widgets.FloatSlider(min=0, max=180, step=1, value=30, description='Angle Range'),
length_factor=widgets.FloatSlider(min=1, max=10, step=1, value=5, description='Base Length'),
linewidth_factor=widgets.FloatSlider(min=0.1, max=2, step=0.1, value=0.5, description='Base Width'),
length_scale=widgets.FloatSlider(min=0.5, max=1.5, step=0.05, value=0.7, description='Length Scale'),
width_scale=widgets.FloatSlider(min=0.5, max=1.0, step=0.05, value=0.7, description='Width Scale'),
branching_factor=widgets.IntSlider(min=1, max=5, step=1, value=2, description='Branches'),
branching_scale=widgets.FloatSlider(min=0.5, max=1.0, step=0.1, value=1.0, description='Branching Scale')
)
Interactive figure (Plotly/JavaScript) — view it on nbviewer.
Interactive widget — run the notebook to use it.
import numpy as np
import plotly.graph_objects as go
from ipywidgets import interact, widgets

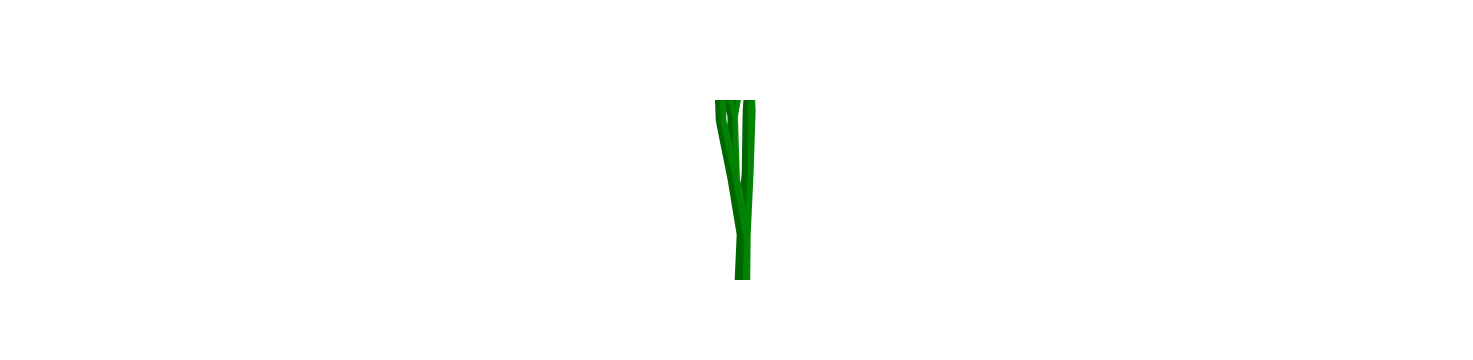

def cylinder_between_points(p0, p1, radius_base, radius_top, n=8):
"""
Generate the mesh data for a tapered cylinder (frustum) between two points p0 and p1.
"""
# Vector from p0 to p1
v = np.array(p1) - np.array(p0)
# Length of the cylinder
length = np.linalg.norm(v)
if length == 0:
return None # Avoid division by zero
# Unit vector in direction of cylinder axis
v = v / length
# Create arbitrary vectors orthogonal to v
not_v = np.array([1, 0, 0])
if (v == not_v).all():
not_v = np.array([0, 1, 0])
n1 = np.cross(v, not_v)
n1 /= np.linalg.norm(n1)
n2 = np.cross(v, n1)
# Generate circle points in the plane orthogonal to v
t = np.linspace(0, 2 * np.pi, n, endpoint=False)
circle_base = np.array([np.cos(t), np.sin(t)]) * radius_base
circle_top = np.array([np.cos(t), np.sin(t)]) * radius_top
# Base circle points
x_base = p0[0] + n1[0] * circle_base[0] + n2[0] * circle_base[1]
y_base = p0[1] + n1[1] * circle_base[0] + n2[1] * circle_base[1]
z_base = p0[2] + n1[2] * circle_base[0] + n2[2] * circle_base[1]
# Top circle points
x_top = p1[0] + n1[0] * circle_top[0] + n2[0] * circle_top[1]
y_top = p1[1] + n1[1] * circle_top[0] + n2[1] * circle_top[1]
z_top = p1[2] + n1[2] * circle_top[0] + n2[2] * circle_top[1]
# Combine base and top points
x = np.concatenate([x_base, x_top])
y = np.concatenate([y_base, y_top])
z = np.concatenate([z_base, z_top])
# Define faces of the cylinder
faces = []
n_points = n
for i in range(n_points):
next_i = (i + 1) % n_points
# Side faces (two triangles per side)
faces.append([i, next_i, n_points + next_i])
faces.append([i, n_points + next_i, n_points + i])
return x, y, z, faces
def draw_tree_3d(x1, y1, z1, theta, phi, depth, angle_range_deg, length_factor,
linewidth_factor, length_scale, width_scale, branching_factor,
branching_scale, initial_depth, cylinders):
if depth > 0:
scale_exponent = initial_depth - depth
scaled_length = length_factor * (length_scale ** scale_exponent)
scaled_width_base = linewidth_factor * (width_scale ** scale_exponent)
# Calculate the top width
scaled_width_top = linewidth_factor * (width_scale ** (scale_exponent + 1))
# Compute the direction vector
direction = np.array([
np.sin(theta) * np.cos(phi),
np.sin(theta) * np.sin(phi),
np.cos(theta)
])
# Compute the new point
x2 = x1 + direction[0] * scaled_length
y2 = y1 + direction[1] * scaled_length
z2 = z1 + direction[2] * scaled_length
# Store the cylinder data
cylinder_data = cylinder_between_points(
[x1, y1, z1],
[x2, y2, z2],
scaled_width_base,
scaled_width_top
)
if cylinder_data:
x_cyl, y_cyl, z_cyl, faces = cylinder_data
cylinders.append({
'x': x_cyl,
'y': y_cyl,
'z': z_cyl,
'faces': faces,
'color': 'green'
})
# Compute current branching factor
current_branching_factor = max(1, int(branching_factor * (branching_scale ** scale_exponent)))
# Generate new branches
angle_range_rad = np.deg2rad(angle_range_deg)
for _ in range(current_branching_factor):
# Random angles within the specified range
delta_theta = angle_range_rad * (np.random.rand() - 0.5)
delta_phi = angle_range_rad * (np.random.rand() - 0.5)
new_theta = theta + delta_theta
new_phi = phi + delta_phi
# Recursive call
draw_tree_3d(
x2, y2, z2, new_theta, new_phi, depth - 1, angle_range_deg,
length_factor, linewidth_factor, length_scale, width_scale,
branching_factor, branching_scale, initial_depth, cylinders
)
def plot_tree_3d(depth, angle_range_deg, length_factor, linewidth_factor,
length_scale, width_scale, branching_factor, branching_scale):
cylinders = []
initial_theta = 0 # Initial angle from z-axis
initial_phi = 0 # Initial angle in x-y plane
initial_depth = depth
draw_tree_3d(
0, 0, 0, initial_theta, initial_phi, depth, angle_range_deg,
length_factor, linewidth_factor, length_scale, width_scale,
branching_factor, branching_scale, initial_depth, cylinders
)
# Prepare data for plotting
fig = go.Figure()
for cyl in cylinders:
fig.add_trace(go.Mesh3d(
x=cyl['x'],
y=cyl['y'],
z=cyl['z'],
color=cyl['color'],
opacity=1.0,
i=[face[0] for face in cyl['faces']],
j=[face[1] for face in cyl['faces']],
k=[face[2] for face in cyl['faces']],
flatshading=True,
showscale=False
))
fig.update_layout(
scene=dict(
xaxis=dict(visible=False),
yaxis=dict(visible=False),
zaxis=dict(visible=False),
aspectmode='data'
),
showlegend=False
)
fig.show()
interact(
plot_tree_3d,
depth=widgets.IntSlider(min=1, max=16, step=1, value=8, description='Depth'),
angle_range_deg=widgets.FloatSlider(min=0, max=180, step=1, value=30, description='Angle Range'),
length_factor=widgets.FloatSlider(min=1, max=10, step=1, value=5, description='Base Length'),
linewidth_factor=widgets.FloatSlider(min=0.1, max=2, step=0.1, value=0.5, description='Base Width'),
length_scale=widgets.FloatSlider(min=0.5, max=2, step=0.05, value=0.7, description='Length Scale'),
width_scale=widgets.FloatSlider(min=0.5, max=2, step=0.05, value=0.7, description='Width Scale'),
branching_factor=widgets.IntSlider(min=1, max=10, step=1, value=2, description='Branches'),
branching_scale=widgets.FloatSlider(min=0.5, max=1.0, step=0.1, value=1.0, description='Branching Scale')
)
Interactive widget — run the notebook to use it.

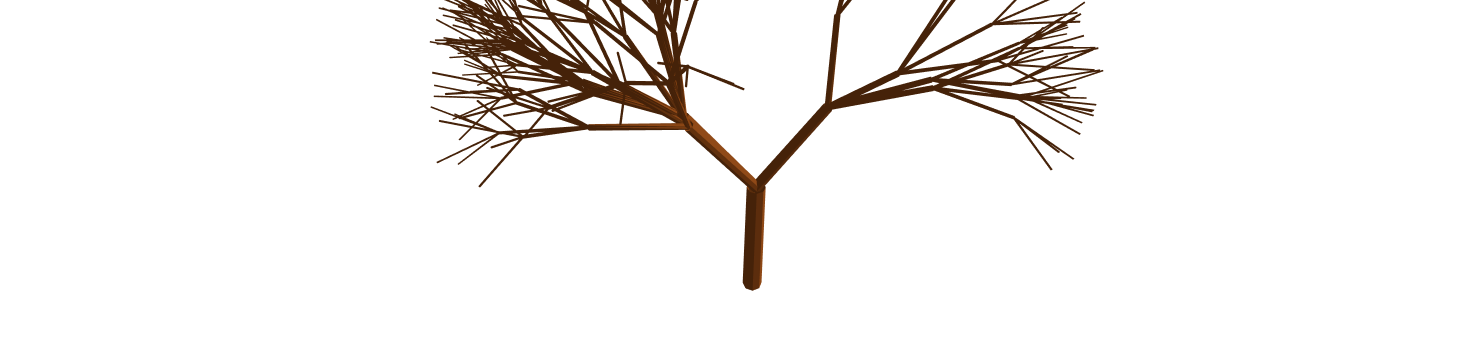

import numpy as np
import plotly.graph_objects as go
from ipywidgets import interact, widgets
def cylinder_mesh(p0, p1, radius_base, radius_top, sections=8):
"""
Generate mesh data for a tapered cylinder (frustum) between two points.
"""
# Vector from p0 to p1
v = np.array(p1) - np.array(p0)
# Length of the cylinder
length = np.linalg.norm(v)
if length == 0:
return None
# Unit vector in direction of the cylinder
v = v / length
# Create arbitrary vectors orthogonal to v
not_v = np.array([1, 0, 0])
if np.allclose(v, not_v):
not_v = np.array([0, 1, 0])
n1 = np.cross(v, not_v)
n1 /= np.linalg.norm(n1)
n2 = np.cross(v, n1)
# Create circle points in the plane orthogonal to v
t = np.linspace(0, 2 * np.pi, sections, endpoint=False)
circle_base = n1[:, None] * np.cos(t)[None, :] + n2[:, None] * np.sin(t)[None, :]
circle_top = circle_base.copy()
# Scale circles by radii
circle_base *= radius_base
circle_top *= radius_top
# Points at base and top
base_points = p0[:, None] + circle_base
top_points = p1[:, None] + circle_top
# Combine points
x = np.hstack([base_points[0], top_points[0]])
y = np.hstack([base_points[1], top_points[1]])
z = np.hstack([base_points[2], top_points[2]])
# Create faces
faces = []
n = sections
for i in range(n):
next_i = (i + 1) % n
faces.append([i, next_i, n + next_i])
faces.append([i, n + next_i, n + i])
return x, y, z, faces
def rotate_vector(v, k, theta):
"""
Rotate vector v around axis k by angle theta using Rodrigues' rotation formula.
"""
v_rot = v * np.cos(theta) + np.cross(k, v) * np.sin(theta) + k * np.dot(k, v) * (1 - np.cos(theta))
return v_rot
def grow_tree(p0, direction, length, radius_base, levels, angle, length_reduction, branches_per_level, tree_elements):
"""
Recursively grow the tree from point p0 in a given direction.
"""
if levels == 0:
return
p1 = p0 + direction * length
# Calculate the top radius (tapering)
radius_top = radius_base * 0.8 # Simple tapering factor
# Add the cylinder representing the trunk or branch
cylinder = cylinder_mesh(p0, p1, radius_base, radius_top)
if cylinder:
x, y, z, faces = cylinder
tree_elements.append({
'x': x,
'y': y,
'z': z,
'faces': faces,
'color': 'saddlebrown'
})
# Calculate child branch parameters
length_child = length * length_reduction
N = branches_per_level
radius_child = radius_base * np.sqrt((radius_top / radius_base)**2 * length / (N * length_child))
# Generate branches at this level
for _ in range(N):
# Random rotation for natural appearance
theta = angle + (np.random.rand() - 0.5) * np.deg2rad(10)
phi = np.random.rand() * 2 * np.pi
# Spherical to Cartesian coordinates
new_direction = np.array([
np.sin(theta) * np.cos(phi),
np.sin(theta) * np.sin(phi),
np.cos(theta)
])
new_direction = new_direction / np.linalg.norm(new_direction)
# Rotate new_direction to align with the parent branch direction
rotation_axis = np.cross([0, 0, 1], direction)
rotation_angle = np.arccos(np.clip(np.dot(direction, [0, 0, 1]), -1.0, 1.0))
if np.linalg.norm(rotation_axis) > 1e-6:
rotation_axis /= np.linalg.norm(rotation_axis)
new_direction = rotate_vector(new_direction, rotation_axis, rotation_angle)
# Recursive call to grow the branch
grow_tree(
p1,
new_direction,
length_child,
radius_child,
levels - 1,
angle,
length_reduction,
branches_per_level,
tree_elements
)
def plot_tree(levels, trunk_length, trunk_radius, angle_deg, length_reduction, branches_per_level):
tree_elements = []
# Start with the main trunk
p0 = np.array([0, 0, 0])
direction = np.array([0, 0, 1]) # Grow along z-axis
angle_rad = np.deg2rad(angle_deg)
grow_tree(
p0,
direction,
trunk_length,
trunk_radius,
levels,
angle_rad,
length_reduction,
branches_per_level,
tree_elements
)
# Plotting
fig = go.Figure()
for elem in tree_elements:
fig.add_trace(go.Mesh3d(
x=elem['x'],
y=elem['y'],
z=elem['z'],
i=[face[0] for face in elem['faces']],
j=[face[1] for face in elem['faces']],
k=[face[2] for face in elem['faces']],
color=elem['color'],
flatshading=True,
lighting=dict(ambient=0.5, diffuse=0.8, roughness=0.9),
showscale=False
))
fig.update_layout(
scene=dict(
xaxis=dict(visible=False),
yaxis=dict(visible=False),
zaxis=dict(visible=False),
aspectmode='data'
),
showlegend=False,
margin=dict(l=0, r=0, t=0, b=0)
)
fig.show()
# Interactive widgets
interact(
plot_tree,
levels=widgets.IntSlider(min=1, max=8, step=1, value=5, description='Levels'),
trunk_length=widgets.FloatSlider(min=1, max=15, step=0.5, value=7, description='Trunk Length'),
trunk_radius=widgets.FloatSlider(min=0.1, max=1.5, step=0.1, value=0.5, description='Trunk Radius'),
angle_deg=widgets.FloatSlider(min=10, max=80, step=5, value=30, description='Branch Angle'),
length_reduction=widgets.FloatSlider(min=0.4, max=0.9, step=0.05, value=0.7, description='Length Reduction'),
branches_per_level=widgets.IntSlider(min=1, max=8, step=1, value=4, description='Branches/Level')
)
Interactive widget — run the notebook to use it.

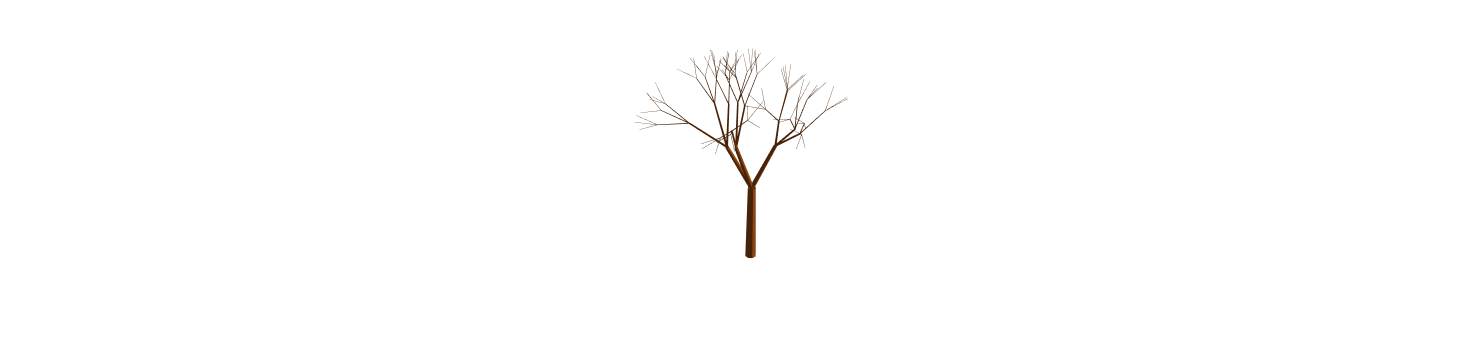

import numpy as np
import plotly.graph_objects as go
from ipywidgets import interact, widgets
def cylinder_mesh(p0, p1, radius_base, radius_top, sections=8):
"""
Generate mesh data for a tapered cylinder (frustum) between two points.
"""
# Vector from p0 to p1
v = np.array(p1) - np.array(p0)
# Length of the cylinder
length = np.linalg.norm(v)
if length == 0:
return None
# Unit vector in direction of the cylinder
v = v / length
# Create arbitrary vectors orthogonal to v
not_v = np.array([1, 0, 0])
if np.allclose(v, not_v):
not_v = np.array([0, 1, 0])
n1 = np.cross(v, not_v)
n1 /= np.linalg.norm(n1)
n2 = np.cross(v, n1)
# Create circle points in the plane orthogonal to v
t = np.linspace(0, 2 * np.pi, sections, endpoint=False)
circle_base = n1[:, None] * np.cos(t)[None, :] + n2[:, None] * np.sin(t)[None, :]
circle_top = circle_base.copy()
# Scale circles by radii
circle_base *= radius_base
circle_top *= radius_top
# Points at base and top
base_points = p0[:, None] + circle_base
top_points = p1[:, None] + circle_top
# Combine points
x = np.hstack([base_points[0], top_points[0]])
y = np.hstack([base_points[1], top_points[1]])
z = np.hstack([base_points[2], top_points[2]])
# Create faces
faces = []
n = sections
for i in range(n):
next_i = (i + 1) % n
faces.append([i, next_i, n + next_i])
faces.append([i, n + next_i, n + i])
return x, y, z, faces
def rotate_vector(v, k, theta):
"""
Rotate vector v around axis k by angle theta using Rodrigues' rotation formula.
"""
v_rot = v * np.cos(theta) + np.cross(k, v) * np.sin(theta) + k * np.dot(k, v) * (1 - np.cos(theta))
return v_rot
def grow_tree(p0, direction, length, radius_base, taper_ratio, levels, angle, length_reduction, branches_per_level, tree_elements):
"""
Recursively grow the tree from point p0 in a given direction.
"""
if levels == 0:
return
# Calculate end point of the current branch
p1 = p0 + direction * length
# Calculate top radius using consistent tapering
radius_top = radius_base * taper_ratio
# Add the cylinder representing the trunk or branch
cylinder = cylinder_mesh(p0, p1, radius_base, radius_top)
if cylinder:
x, y, z, faces = cylinder
tree_elements.append({
'x': x,
'y': y,
'z': z,
'faces': faces,
'color': 'saddlebrown'
})
# Calculate base radius of child branches
N = branches_per_level
radius_base_child = radius_top / np.sqrt(N)
# Ensure the base radius of child branches equals the top radius of the parent branch divided by sqrt(N)
# Calculate top radius of child branches using the same taper ratio
radius_top_child = radius_base_child * taper_ratio
# Length of child branches
length_child = length * length_reduction
# Generate branches at this level
for _ in range(N):
# Random rotation for natural appearance
theta = angle + (np.random.rand() - 0.5) * np.deg2rad(10)
phi = np.random.rand() * 2 * np.pi
# Spherical to Cartesian coordinates
new_direction = np.array([
np.sin(theta) * np.cos(phi),
np.sin(theta) * np.sin(phi),
np.cos(theta)
])
new_direction = new_direction / np.linalg.norm(new_direction)
# Rotate new_direction to align with the parent branch direction
rotation_axis = np.cross([0, 0, 1], direction)
rotation_angle = np.arccos(np.clip(np.dot(direction, [0, 0, 1]), -1.0, 1.0))
if np.linalg.norm(rotation_axis) > 1e-6:
rotation_axis /= np.linalg.norm(rotation_axis)
new_direction = rotate_vector(new_direction, rotation_axis, rotation_angle)
# Recursive call to grow the branch
grow_tree(
p1,
new_direction,
length_child,
radius_base_child,
taper_ratio,
levels - 1,
angle,
length_reduction,
branches_per_level,
tree_elements
)
def plot_tree(levels, trunk_length, trunk_radius, taper_ratio, angle_deg, length_reduction, branches_per_level):
tree_elements = []
# Start with the main trunk
p0 = np.array([0, 0, 0])
direction = np.array([0, 0, 1]) # Grow along z-axis
angle_rad = np.deg2rad(angle_deg)
grow_tree(
p0,
direction,
trunk_length,
trunk_radius,
taper_ratio,
levels,
angle_rad,
length_reduction,
branches_per_level,
tree_elements
)
# Plotting
fig = go.Figure()
for elem in tree_elements:
fig.add_trace(go.Mesh3d(
x=elem['x'],
y=elem['y'],
z=elem['z'],
i=[face[0] for face in elem['faces']],
j=[face[1] for face in elem['faces']],
k=[face[2] for face in elem['faces']],
color=elem['color'],
flatshading=True,
lighting=dict(ambient=0.5, diffuse=0.8, roughness=0.9),
showscale=False
))
fig.update_layout(
scene=dict(
xaxis=dict(visible=False),
yaxis=dict(visible=False),
zaxis=dict(visible=False),
aspectmode='data'
),
showlegend=False,
margin=dict(l=0, r=0, t=0, b=0)
)
fig.show()
# Interactive widgets
interact(
plot_tree,
levels=widgets.IntSlider(min=1, max=8, step=1, value=5, description='Levels'),
trunk_length=widgets.FloatSlider(min=1, max=15, step=0.5, value=7, description='Trunk Length'),
trunk_radius=widgets.FloatSlider(min=0.1, max=1.5, step=0.1, value=0.5, description='Trunk Radius'),
taper_ratio=widgets.FloatSlider(min=0.5, max=1.0, step=0.05, value=0.7, description='Taper Ratio'),
angle_deg=widgets.FloatSlider(min=10, max=80, step=5, value=30, description='Branch Angle'),
length_reduction=widgets.FloatSlider(min=0.5, max=1.0, step=0.05, value=0.7, description='Length Reduction'),
branches_per_level=widgets.IntSlider(min=1, max=8, step=1, value=3, description='Branches/Level')
)
Interactive widget — run the notebook to use it.
import numpy as np
import plotly.graph_objects as go
from ipywidgets import interact, widgets
def cylinder_mesh(p0, p1, radius_base, radius_top, sections=8):
"""
Generate mesh data for a tapered cylinder (frustum) between two points.
"""
# Vector from p0 to p1
v = np.array(p1) - np.array(p0)
# Length of the cylinder
length = np.linalg.norm(v)
if length == 0:
return None
# Unit vector in direction of the cylinder
v = v / length
# Create arbitrary vectors orthogonal to v
not_v = np.array([1, 0, 0])
if np.allclose(v, not_v):
not_v = np.array([0, 1, 0])
n1 = np.cross(v, not_v)
n1 /= np.linalg.norm(n1)
n2 = np.cross(v, n1)
# Create circle points in the plane orthogonal to v
t = np.linspace(0, 2 * np.pi, sections, endpoint=False)
circle_base = n1[:, None] * np.cos(t)[None, :] + n2[:, None] * np.sin(t)[None, :]
circle_top = circle_base.copy()
# Scale circles by radii
circle_base *= radius_base
circle_top *= radius_top
# Points at base and top
base_points = p0[:, None] + circle_base
top_points = p1[:, None] + circle_top
# Combine points
x = np.hstack([base_points[0], top_points[0]])
y = np.hstack([base_points[1], top_points[1]])
z = np.hstack([base_points[2], top_points[2]])
# Create faces
faces = []
n = sections
for i in range(n):
next_i = (i + 1) % n
faces.append([i, next_i, n + next_i])
faces.append([i, n + next_i, n + i])
return x, y, z, faces
def rotate_vector(v, k, theta):
"""
Rotate vector v around axis k by angle theta using Rodrigues' rotation formula.
"""
v_rot = v * np.cos(theta) + np.cross(k, v) * np.sin(theta) + k * np.dot(k, v) * (1 - np.cos(theta))
return v_rot
def grow_tree(p0, direction, length, radius_base, taper_ratio, levels, angle, length_reduction,
branches_per_level, tree_elements, is_root=False):
"""
Recursively grow the tree from point p0 in a given direction.
"""
if levels == 0 or radius_base < 0.01 or length < 0.01:
return
# Calculate end point of the current branch
p1 = p0 + direction * length
# Ensure roots do not grow above ground level
if is_root and p1[2] > 0:
p1[2] = 0
# Calculate top radius using consistent tapering
radius_top = radius_base * taper_ratio
# Add the cylinder representing the trunk or branch
cylinder = cylinder_mesh(p0, p1, radius_base, radius_top)
if cylinder:
x, y, z, faces = cylinder
tree_elements.append({
'x': x,
'y': y,
'z': z,
'faces': faces,
'color': 'saddlebrown' if not is_root else 'sienna'
})
# Calculate base radius of child branches
N = branches_per_level
if N > 0:
radius_base_child = radius_top / np.sqrt(N)
else:
radius_base_child = 0
# Length of child branches
length_child = length * length_reduction
# Generate branches at this level
for _ in range(N):
# Random rotation for natural appearance
if is_root:
# For roots, theta ranges from π/2 to π (90° to 180°), pointing downward
min_theta = np.pi / 2
max_theta = np.pi / 2 + angle
theta = min_theta + np.random.rand() * (max_theta - min_theta)
else:
# For crown, theta ranges from 0 to angle (pointing upward)
min_theta = 0
max_theta = angle
theta = min_theta + np.random.rand() * (max_theta - min_theta)
# Add small random variation
theta += (np.random.rand() - 0.5) * np.deg2rad(10)
phi = np.random.rand() * 2 * np.pi
# Ensure theta is within valid range
if is_root:
theta = np.clip(theta, np.pi / 2, np.pi)
else:
theta = np.clip(theta, 0, np.pi / 2)
# Spherical to Cartesian coordinates
new_direction = np.array([
np.sin(theta) * np.cos(phi),
np.sin(theta) * np.sin(phi),
np.cos(theta)
])
# Rotate new_direction to align with the parent branch direction
rotation_axis = np.cross([0, 0, 1], direction)
rotation_angle = np.arccos(np.clip(np.dot(direction, [0, 0, 1]), -1.0, 1.0))
if np.linalg.norm(rotation_axis) > 1e-6:
rotation_axis /= np.linalg.norm(rotation_axis)
new_direction = rotate_vector(new_direction, rotation_axis, rotation_angle)
# Recursive call to grow the branch
grow_tree(
p1,
new_direction,
length_child,
radius_base_child,
taper_ratio,
levels - 1,
angle,
length_reduction,
branches_per_level,
tree_elements,
is_root=is_root
)
def plot_tree(
# Crown parameters
crown_levels, crown_length, crown_radius, crown_taper_ratio, crown_angle_deg, crown_length_reduction, crown_branches_per_level,
# Root parameters
root_levels, root_length, root_radius, root_taper_ratio, root_angle_deg, root_length_reduction, root_branches_per_level
):
tree_elements = []
# Start with the main trunk (above ground)
p0 = np.array([0, 0, 0])
direction = np.array([0, 0, 1]) # Grow upwards
crown_angle_rad = np.deg2rad(crown_angle_deg)
grow_tree(
p0,
direction,
crown_length,
crown_radius,
crown_taper_ratio,
crown_levels,
crown_angle_rad,
crown_length_reduction,
crown_branches_per_level,
tree_elements,
is_root=False
)
# Now grow the roots (below ground)
direction_root = np.array([0, 0, -1]) # Grow downwards
root_angle_rad = np.deg2rad(root_angle_deg)
grow_tree(
p0,
direction_root,
root_length,
root_radius,
root_taper_ratio,
root_levels,
root_angle_rad,
root_length_reduction,
root_branches_per_level,
tree_elements,
is_root=True
)
# Plotting
fig = go.Figure()
for elem in tree_elements:
fig.add_trace(go.Mesh3d(
x=elem['x'],
y=elem['y'],
z=elem['z'],
i=[face[0] for face in elem['faces']],
j=[face[1] for face in elem['faces']],
k=[face[2] for face in elem['faces']],
color=elem['color'],
flatshading=True,
lighting=dict(ambient=0.5, diffuse=0.8, roughness=0.9),
showscale=False
))
fig.update_layout(
scene=dict(
xaxis=dict(visible=False),
yaxis=dict(visible=False),
zaxis=dict(visible=False),
aspectmode='data'
),
showlegend=False,
margin=dict(l=0, r=0, t=0, b=0)
)
fig.show()
# Interactive widgets
crown_controls = {
'crown_levels': widgets.IntSlider(min=1, max=8, step=1, value=5, description='Crown Levels'),
'crown_length': widgets.FloatSlider(min=1, max=15, step=0.5, value=7, description='Crown Length'),
'crown_radius': widgets.FloatSlider(min=0.1, max=1.5, step=0.1, value=0.5, description='Crown Radius'),
'crown_taper_ratio': widgets.FloatSlider(min=0.5, max=1.0, step=0.05, value=0.7, description='Crown Taper'),
'crown_angle_deg': widgets.FloatSlider(min=10, max=80, step=5, value=30, description='Crown Angle'),
'crown_length_reduction': widgets.FloatSlider(min=0.5, max=1.0, step=0.05, value=0.7, description='Crown Length Red.'),
'crown_branches_per_level': widgets.IntSlider(min=0, max=8, step=1, value=3, description='Crown Branches')
}
root_controls = {
'root_levels': widgets.IntSlider(min=1, max=8, step=1, value=4, description='Root Levels'),
'root_length': widgets.FloatSlider(min=1, max=15, step=0.5, value=5, description='Root Length'),
'root_radius': widgets.FloatSlider(min=0.1, max=1.5, step=0.1, value=0.4, description='Root Radius'),
'root_taper_ratio': widgets.FloatSlider(min=0.5, max=1.0, step=0.05, value=0.7, description='Root Taper'),
'root_angle_deg': widgets.FloatSlider(min=-80, max=80, step=5, value=45, description='Root Angle'),
'root_length_reduction': widgets.FloatSlider(min=0.5, max=1.0, step=0.05, value=0.8, description='Root Length Red.'),
'root_branches_per_level': widgets.IntSlider(min=0, max=8, step=1, value=2, description='Root Branches')
}
interact(
plot_tree,
**crown_controls,
**root_controls
)

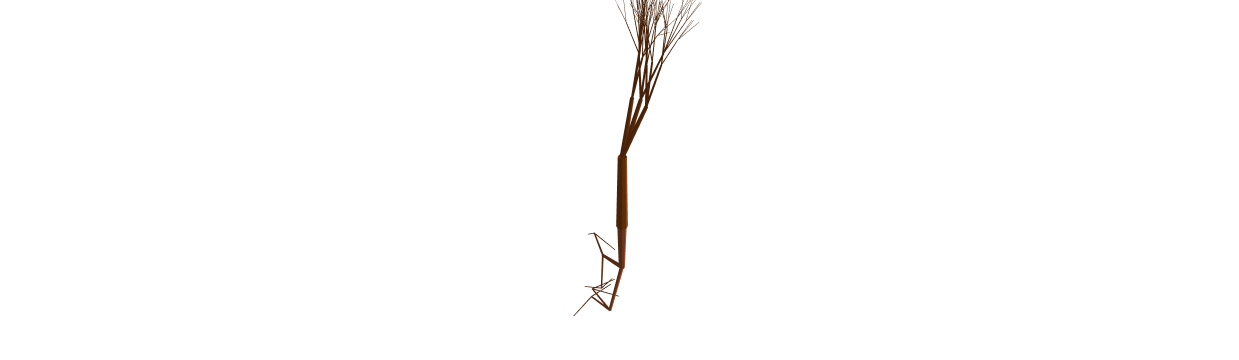

Interactive widget — run the notebook to use it.
