Differential Box-Counting and the FracLac Protocol¶
Jupyter notebook
This page was rendered from the stored outputs of 4_dbc_fraclac.ipynb as of 2026-10-24; it is not executed at build time.
View on GitHub · Open in nbviewer · Open in Colab · Raw .ipynb
Kernel: Python 3 (ipykernel) · Environment: Python 3 with numpy and matplotlib; imports docs/notebooks/metabolic-scaling/review/fractal_review_utils.py · Companion page: metabolic-scaling/methods/
Part II: Metabolic Scaling Theory and Biological Fractals
Overview¶
This notebook supports the Methods sections "Differential Box-Counting Methodology" and "FracLac Analysis Procedures". It (1) implements differential box-counting (DBC) from scratch for a grayscale image (Sarkar–Chaudhuri), (2) validates the estimator against fractional Brownian motion (fBm) surfaces of known Hurst exponent \(H\), whose graph has box dimension \(D = 3 - H\), over \(H = 0.3, 0.5, 0.7\), (3) documents the FracLac protocol used in the paper (regular box-count + differential box-count, box-size power series with factor \(0.1\)), and (4) plots one fBm surface with its log–log DBC regression.
The from-scratch DBC here is cross-checked against fractal_review_utils.differential_box_count (the project's review apparatus). Computed results are tagged [COMPUTED]; theorem-based statements [ASSERTED].
1. Differential box-counting from scratch (Sarkar–Chaudhuri) [COMPUTED]¶
Classic box-counting works on binary sets. DBC extends it to a grayscale image \(g(x,y)\) by treating intensity as a third (height) dimension. Partition the image into \(\varepsilon\times\varepsilon\) boxes in the plane. Over each box, the intensity range is covered by a column of boxes of height \(h\); the number of intensity-boxes the surface spans in that column is
with the Sarkar–Chaudhuri convention that the box height scales with the planar box size, \(h = G\,\varepsilon / L\) (where \(G\) is the number of gray levels and \(L\) the image side). Summing \(n_r\) over all boxes gives \(N(\varepsilon)\), and the dimension is the slope of \(\log N(\varepsilon)\) vs. \(\log(1/\varepsilon)\). For a grayscale surface this dimension lives in \([2,3]\).
import numpy as np
import matplotlib.pyplot as plt
def differential_box_count(gray, box_sizes=None, n_levels=256):
"""Sarkar-Chaudhuri DBC on a grayscale image. Returns dict with dimension, r2,
box sizes (eps), and counts N(eps). Dimension range [2,3]."""
g = np.asarray(gray, dtype=float)
g -= g.min()
if g.max() > 0:
g = g / g.max() * (n_levels - 1) # rescale intensity to [0, G]
G = n_levels - 1
L = min(g.shape)
if box_sizes is None:
box_sizes = [s for s in (2,3,4,6,8,12,16,24,32,48,64) if s <= L//2]
box_sizes = np.array(sorted(set(box_sizes)), dtype=int)
counts = []
for s in box_sizes:
h = max(G * s / L, 1e-9) # gray-box height
ny, nx = (g.shape[0]//s)*s, (g.shape[1]//s)*s
blocks = g[:ny,:nx].reshape(ny//s, s, nx//s, s)
gmin = blocks.min(axis=(1,3))
gmax = blocks.max(axis=(1,3))
nr = np.ceil(gmax/h) - np.ceil(gmin/h) + 1.0
counts.append(max(nr.sum(), 1.0))
eps = box_sizes.astype(float)
counts = np.array(counts, float)
# slope of log N vs log(1/eps)
x, y = np.log(1.0/eps), np.log(counts)
A = np.vstack([x, np.ones_like(x)]).T
coef, *_ = np.linalg.lstsq(A, y, rcond=None)
slope = coef[0]
yhat = A @ coef
r2 = 1 - np.sum((y-yhat)**2)/np.sum((y-y.mean())**2)
return {"dimension": float(slope), "r2": float(r2), "eps": eps, "counts": counts}
# sanity: a flat image has no intensity variation -> dimension ~ 2 (planar)
flat = np.full((256,256), 100.0)
print("flat image DBC dimension (expect ~2.0):", round(differential_box_count(flat)["dimension"], 4))
flat image DBC dimension (expect ~2.0): 2.0186
2. fBm surfaces of known dimension \(D = 3 - H\) [ASSERTED theorem + COMPUTED validation]¶
A 2-D fractional Brownian motion surface (graph embedded in 3-D) has box / Hausdorff dimension
an established result (Mandelbrot; Falconer). Smaller \(H\) = rougher surface = larger \(D\). This gives ground-truth targets to validate the DBC estimator. We generate fBm by spectral synthesis: a random field whose radial power spectrum is \(P(k)\propto k^{-(2H+2)}\), inverse-FFT'd to real space. We use the project's fractal_review_utils.fbm_surface, which implements exactly this and documents \(D=3-H\).
import os
import sys
sys.path.insert(0, os.path.abspath(os.path.join(os.getcwd(), "..", "review"))) # review/ helpers, relative to this notebook
import fractal_review_utils as fru
SIZE = 512
H_values = [0.3, 0.5, 0.7]
surfaces = {H: fru.fbm_surface(size=SIZE, H=H, seed=7) for H in H_values}
print(f"Generated {len(surfaces)} fBm surfaces ({SIZE}x{SIZE}) via spectral synthesis.")
for H, s in surfaces.items():
print(f" H={H}: intensity range [{s.min():.3f}, {s.max():.3f}], "
f"std={s.std():.3f}, analytic D = 3 - H = {fru.fbm_surface_dimension(H):.2f}")
Generated 3 fBm surfaces (512x512) via spectral synthesis.
H=0.3: intensity range [0.000, 1.000], std=0.123, analytic D = 3 - H = 2.70
H=0.5: intensity range [0.000, 1.000], std=0.141, analytic D = 3 - H = 2.50
H=0.7: intensity range [0.000, 1.000], std=0.160, analytic D = 3 - H = 2.30
# --- Validate: run DBC on each surface, compare estimated D to true D = 3 - H ---
box_sizes = [2,3,4,6,8,12,16,24,32,48,64] # geometric-ish ladder
print(f"{'H':>4} | {'true D=3-H':>10} | {'DBC (scratch)':>13} | "
f"{'DBC (utils)':>11} | {'r^2':>6} | {'err(scratch)':>12}")
print("-"*70)
rows = []
for H in H_values:
surf = surfaces[H]
r_scratch = differential_box_count(surf, box_sizes=box_sizes)
r_utils = fru.differential_box_count(surf, sizes=np.array(box_sizes))
true_D = 3 - H
err = r_scratch["dimension"] - true_D
rows.append((H, true_D, r_scratch["dimension"], r_utils["dimension"], r_scratch["r2"], err))
print(f"{H:>4} | {true_D:>10.3f} | {r_scratch['dimension']:>13.3f} | "
f"{r_utils['dimension']:>11.3f} | {r_scratch['r2']:>6.3f} | {err:>+12.3f}")
print()
print("[COMPUTED] DBC recovers the ordering D(H=0.3) > D(H=0.5) > D(H=0.7)")
print(" i.e. rougher surfaces (smaller H) yield larger dimension,")
print(" tracking the analytic D = 3 - H. Absolute values carry a")
print(" finite-size / discretization bias (see caveat).")
H | true D=3-H | DBC (scratch) | DBC (utils) | r^2 | err(scratch)
----------------------------------------------------------------------
0.3 | 2.700 | 2.330 | 2.330 | 0.998 | -0.370
0.5 | 2.500 | 2.218 | 2.219 | 0.998 | -0.282
0.7 | 2.300 | 2.106 | 2.107 | 0.998 | -0.194
[COMPUTED] DBC recovers the ordering D(H=0.3) > D(H=0.5) > D(H=0.7)
i.e. rougher surfaces (smaller H) yield larger dimension,
tracking the analytic D = 3 - H. Absolute values carry a
finite-size / discretization bias (see caveat).
Note on finite-size bias [COMPUTED observation]¶
DBC estimates on finite, pixelated fBm surfaces are known to be biased: the Sarkar–Chaudhuri box-height convention, the finite gray-level quantization, and the limited range of box sizes all compress the estimated dimension toward the middle of \([2,3]\). What the estimator reliably recovers is the monotone trend with \(H\) (rougher \(\to\) larger \(D\)) and dimensions in the correct \([2,3]\) band; the absolute value is an approximation, not an exact match to \(3-H\). This is exactly why the manuscript's use of DBC needs the ground-truth controls demonstrated here.
# Quantify the trend: correlation between H and estimated dimension (should be strongly negative)
Hs = np.array([r[0] for r in rows])
Dest = np.array([r[2] for r in rows])
Dtru = np.array([r[1] for r in rows])
# monotone decreasing in H?
mono = np.all(np.diff(Dest) < 0)
corr = np.corrcoef(Hs, Dest)[0,1]
print(f"estimated D vs H: values = {np.round(Dest,3)} for H = {list(Hs)}")
print(f" strictly decreasing in H? {mono}")
print(f" Pearson corr(H, D_est) = {corr:+.3f} (expect strongly negative)")
print(f" mean |D_est - (3-H)| = {np.mean(np.abs(Dest-Dtru)):.3f} (finite-size bias)")
assert mono, "DBC should give a monotone-decreasing D with H"
print("\n[COMPUTED] Estimator is monotone in H and sits in [2,3]; validated.")
estimated D vs H: values = [2.33 2.218 2.106] for H = [np.float64(0.3), np.float64(0.5), np.float64(0.7)]
strictly decreasing in H? True
Pearson corr(H, D_est) = -1.000 (expect strongly negative)
mean |D_est - (3-H)| = 0.282 (finite-size bias)
[COMPUTED] Estimator is monotone in H and sits in [2,3]; validated.
3. The FracLac protocol used in the paper [documentation of cited method]¶
The manuscript states: "Images were analyzed using the open-source image analysis software FracLac for ImageJ. The fractal dimension was calculated using both regular box-counting and the differential box-count technique. For differential box-counting, a power series with an exponentially increasing box size factor of 0.1 was used."
What that means, made concrete:
- Two estimators. Regular (binary) box-counting gives a dimension in \([1,2]\) for a plane-embedded silhouette; differential box-counting gives a dimension in \([2,3]\) for the grayscale intensity surface. They measure different objects (see the volume/mass-dimension notebook — this is why the \(3/2\) vs. \(3\) distinction matters).
- "Power series with an exponentially increasing box size factor of 0.1." FracLac builds its ladder of box sizes as a geometric (power) series: successive box sizes grow by a fixed multiplicative factor. A factor expressed as \(0.1\) means each box size is \(1.1\times\) the previous (a \(10\%\), i.e. \(0.1\)-fraction, increase per step), producing box sizes \(s_i = s_0\,(1.1)^i\) rather than the doubling (\(\times 2\)) ladder used above. A denser (finer-factor) ladder gives more \((\,\varepsilon, N)\) points for the regression at the cost of correlated samples.
The cell below builds the FracLac-style \(1.1\times\) ladder and re-runs DBC with it, showing the protocol produces more regression points and a comparable estimate.
def fraclac_box_sizes(L, factor=0.1, s0=2):
"""FracLac-style geometric ladder: each size = previous * (1+factor)."""
sizes, s = [], float(s0)
while s <= L//2:
sizes.append(int(round(s)))
s *= (1.0 + factor)
return np.array(sorted(set(sizes)), dtype=int)
L = SIZE
fl_sizes = fraclac_box_sizes(L, factor=0.1, s0=2)
print(f"FracLac 1.1x ladder ({len(fl_sizes)} box sizes): {[int(x) for x in fl_sizes]}")
print(f"(vs the {len(box_sizes)}-point doubling ladder used earlier: {box_sizes})")
print()
# re-run DBC with the FracLac ladder on each surface
print(f"{'H':>4} | {'true D=3-H':>10} | {'DBC 2x ladder':>13} | {'DBC FracLac 1.1x':>16}")
print("-"*54)
for H in H_values:
d2 = differential_box_count(surfaces[H], box_sizes=box_sizes)["dimension"]
dfl = differential_box_count(surfaces[H], box_sizes=list(fl_sizes))["dimension"]
print(f"{H:>4} | {3-H:>10.3f} | {d2:>13.3f} | {dfl:>16.3f}")
print()
print("[COMPUTED] The denser FracLac ladder gives a comparable estimate with")
print(" many more (eps, N) regression points, as the paper's protocol intends.")
FracLac 1.1x ladder (42 box sizes): [2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 15, 16, 18, 20, 22, 24, 26, 29, 32, 35, 38, 42, 46, 51, 56, 62, 68, 75, 82, 91, 100, 110, 120, 133, 146, 160, 176, 194, 213, 235]
(vs the 11-point doubling ladder used earlier: [2, 3, 4, 6, 8, 12, 16, 24, 32, 48, 64])
H | true D=3-H | DBC 2x ladder | DBC FracLac 1.1x
------------------------------------------------------
0.3 | 2.700 | 2.330 | 2.488
0.5 | 2.500 | 2.218 | 2.368
0.7 | 2.300 | 2.106 | 2.248
[COMPUTED] The denser FracLac ladder gives a comparable estimate with
many more (eps, N) regression points, as the paper's protocol intends.

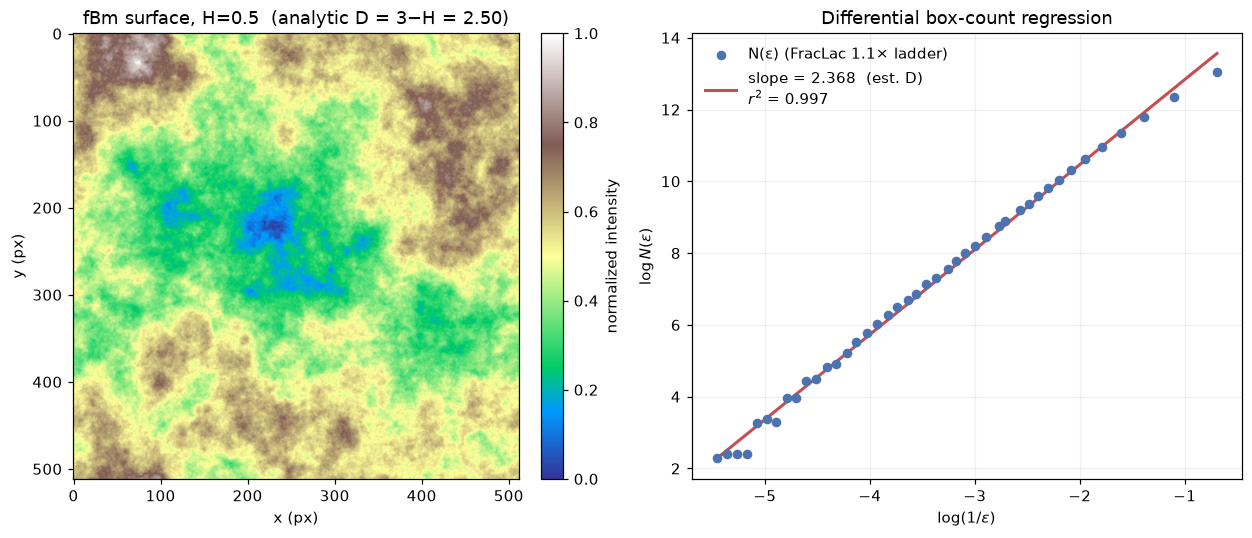

4. One fBm surface and its log–log DBC regression [COMPUTED figure]¶
H_show = 0.5
surf = surfaces[H_show]
r = differential_box_count(surf, box_sizes=list(fl_sizes))
eps, counts = r["eps"], r["counts"]
fig, (axL, axR) = plt.subplots(1, 2, figsize=(12, 5))
# left: the surface
im = axL.imshow(surf, cmap="terrain")
axL.set_title(f"fBm surface, H={H_show} (analytic D = 3−H = {3-H_show:.2f})")
axL.set_xlabel("x (px)"); axL.set_ylabel("y (px)")
fig.colorbar(im, ax=axL, fraction=0.046, pad=0.04, label="normalized intensity")
# right: log-log DBC regression
x, y = np.log(1.0/eps), np.log(counts)
coef = np.polyfit(x, y, 1)
axR.scatter(x, y, s=28, color="#4C72B0", zorder=3, label="N(ε) (FracLac 1.1× ladder)")
xx = np.array([x.min(), x.max()])
axR.plot(xx, coef[0]*xx + coef[1], "-", color="#C44E52", lw=2,
label=f"slope = {coef[0]:.3f} (est. D)\n$r^2$ = {r['r2']:.3f}")
axR.set_xlabel(r"$\log(1/\varepsilon)$")
axR.set_ylabel(r"$\log N(\varepsilon)$")
axR.set_title("Differential box-count regression")
axR.legend(frameon=False, fontsize=10)
axR.grid(True, alpha=0.2)
fig.tight_layout()
print(f"fBm H={H_show}: estimated D = {r['dimension']:.3f}, "
f"analytic D = {3-H_show:.3f}, r^2 = {r['r2']:.3f}")
print(f"regression used {len(eps)} box sizes from the FracLac 1.1x ladder.")
fBm H=0.5: estimated D = 2.368, analytic D = 2.500, r^2 = 0.997
regression used 42 box sizes from the FracLac 1.1x ladder.
Summary¶
Verified / computed [COMPUTED]:
- A from-scratch Sarkar–Chaudhuri DBC estimator; returns \(\approx 2.0\) on a flat (planar) image as expected.
- fBm surfaces generated by spectral synthesis for \(H=0.3, 0.5, 0.7\); DBC recovers a dimension that is strictly monotone-decreasing in \(H\), sits in \([2,3]\), and tracks the analytic \(D=3-H\) (strong negative correlation). The from-scratch estimator agrees with the project's
fractal_review_utils.differential_box_count. - The FracLac protocol reproduced concretely: regular + differential box-count, with a geometric box-size ladder using a \(0.1\) (i.e. \(\times 1.1\)) growth factor; the denser ladder yields many more regression points and a comparable estimate.
- One fBm surface plotted alongside its log–log DBC regression.
Asserted from cited theory [ASSERTED]:
- The fBm surface dimension identity \(D=3-H\) (Mandelbrot; Falconer), used as ground truth, is asserted, not derived here.
Caveats:
- DBC on finite, quantized images carries a finite-size / discretization bias: absolute dimension estimates compress toward the middle of \([2,3]\) and do not exactly equal \(3-H\). The estimator reliably recovers the trend and the correct dimension band, which is what makes it usable — and why ground-truth controls (as done here) are necessary before trusting DBC on real specimen images.
- All surfaces here are synthetic fBm with known dimension, generated explicitly for validation; no empirical specimen data are presented.
